SoftPlot and Oscilloscopes

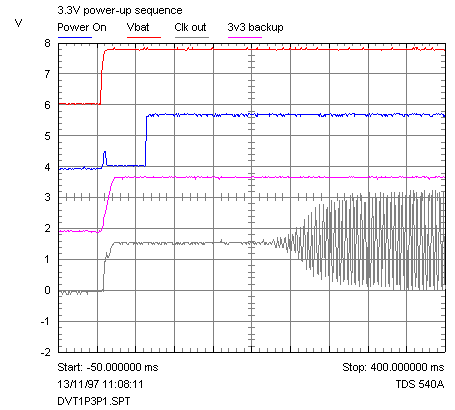

SoftPlot is the perfect complement to your digital storage oscilloscope. By providing a repeatable trigger, many traces can be collected and plotted even with a two-channel scope. Use markers to calculate risetime or intervals between events on different traces. Label traces with meaningful signal names, and add trace notes to comprehensively document your testing.

Graphic: 4chscope.gif

Use trace maths to calculate instantaneous power from a voltage and current measurement, or to differentiate a trace to show slew rate in volts per second.

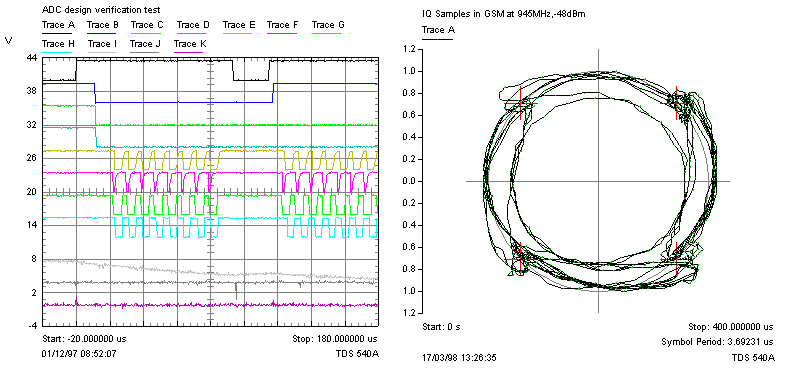

Two separate scope channels can be combined within SoftPlot to give a complex pair, which can then be displayed as an IQ trajectory - useful for debugging baseband circuits in modulation systems.

Graphic: clevrcro.gif
