Introducing the premier version of SoftPlot :- Test automation and documentation for RF Engineers, in one easy-to-use package
The SoftPlot +Plus+ Advantage
SoftPlot +Plus+ has all the capabilities of regular SoftPlot, combined with the following extra functionality:

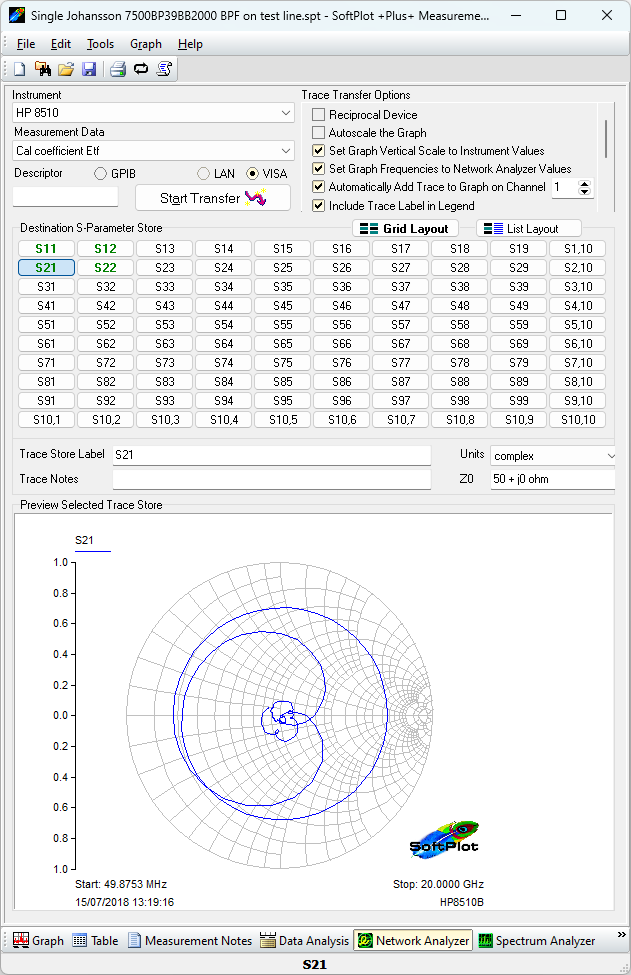

- 100 Trace Stores. Regular SoftPlot has 16 stores, but with 100 stores it is possible to characterise 10-port devices, or accumulate trend data, etc.
- Independent X-axis Data for each store. Regular SoftPlot has a common X-axis for all stores, which is fine for s-parameter data. Here this has been improved to allow each store to have fully independent values and numbers of points.

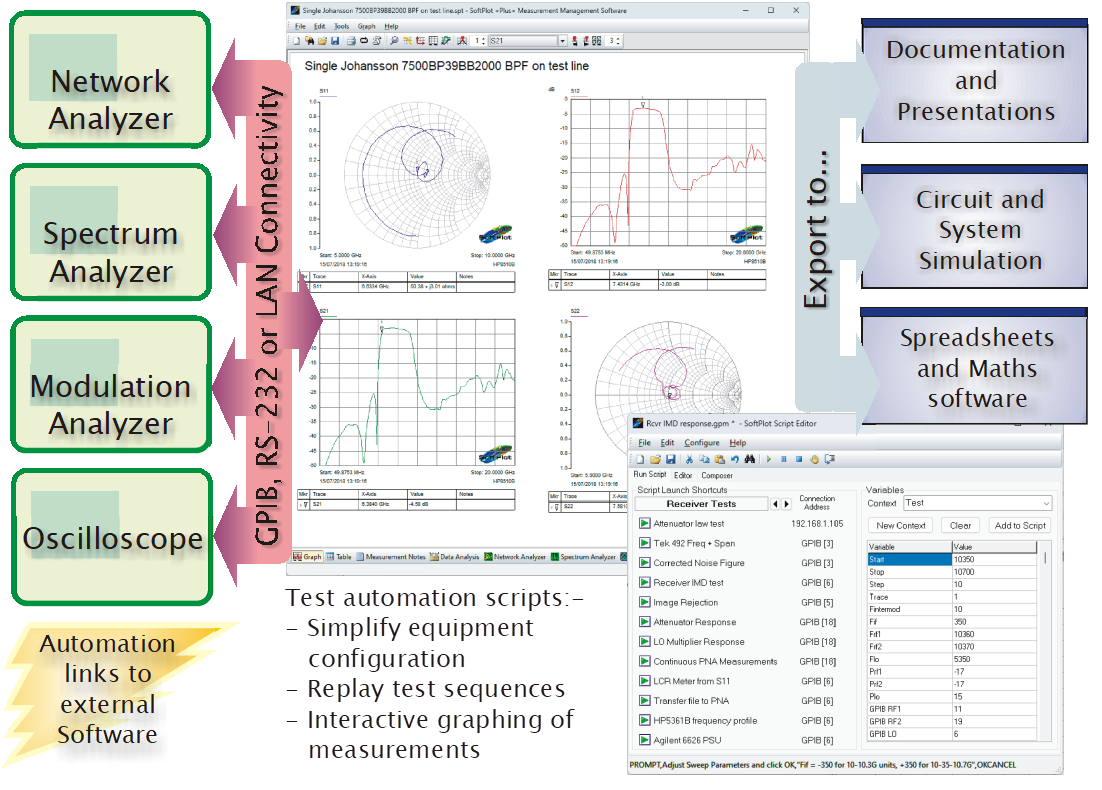

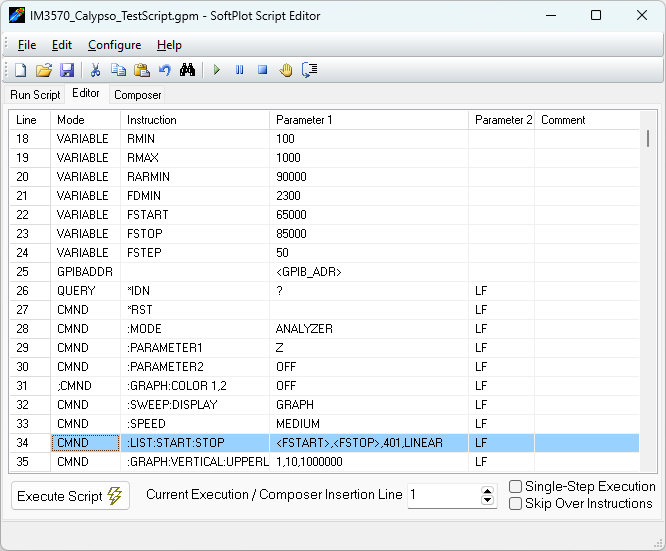

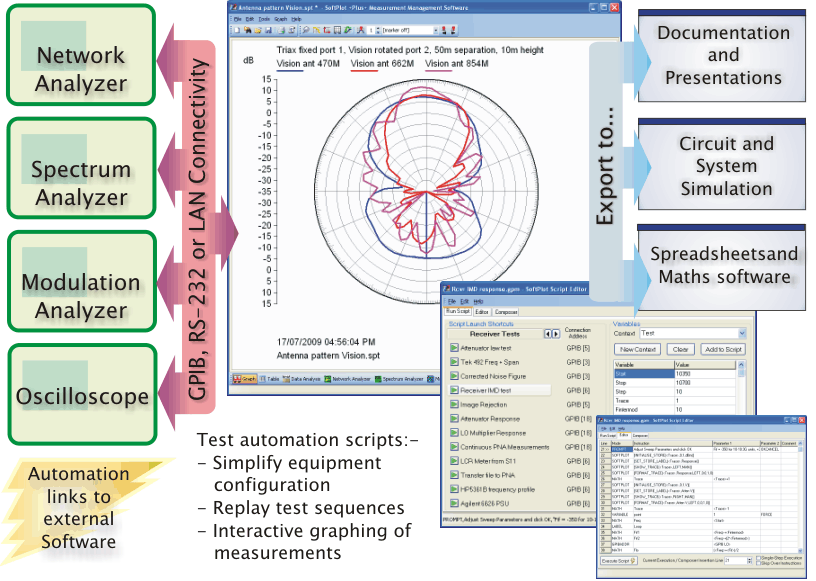

- Scripting. SoftPlot +Plus+ scripts can be used to simply learn and replay frequently-used menu selections and button clicks. But more than that, test automation can be achieved by sequencing GPIB commands to test equipment, and this can be mixed with SoftPlot functions to allow results to be gathered and graphed interactively. A fully-featured scripting editor allows new scripts to be composed, tested and debugged.
Sophisticated tests can be put together quickly and efficiently. Multiple items of test equipment can be controlled together. Variables can be configured to allow any script to run with user-defined parameters.
Find out more about SoftPlot..
